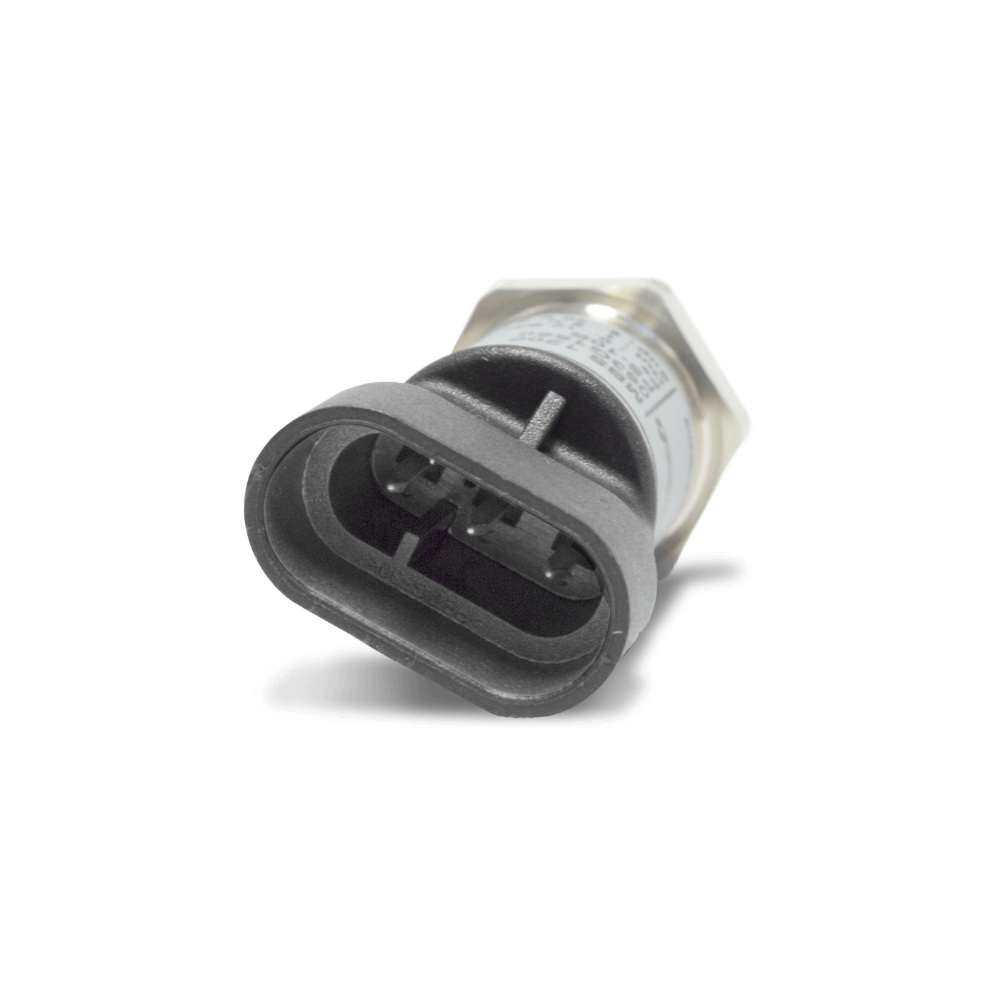

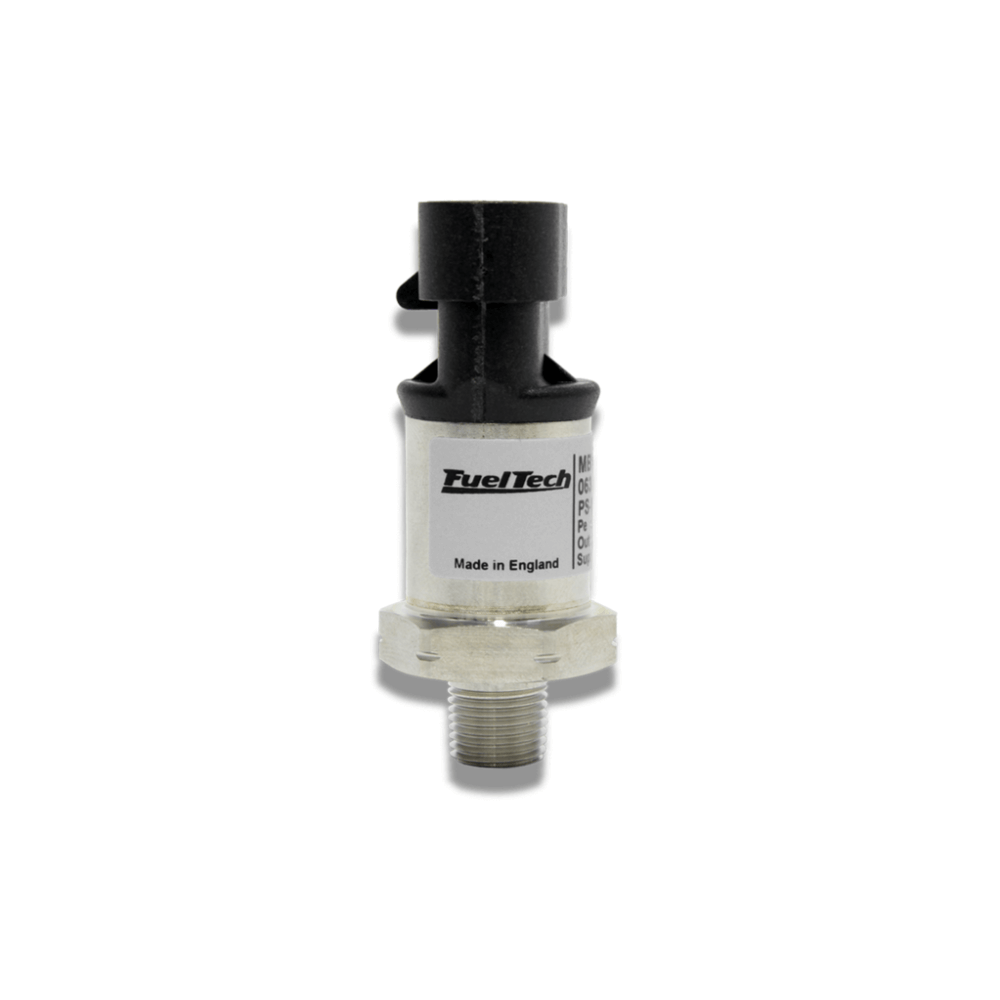

PS-10B Pressure Sensor (0-10 bar)

5005000694

$99.00 $145.00

Shipping Cut-Off:  USPS 9:30am EST / UPS 1:00pm EST

Typically used to monitor fuel, oil, and wastegate pressure.

*Not compatible with PRO500/PRO600 or other complete FuelTech engine harnesses. Use PS-150 for these applications.

TECHNICAL DESCRIPTION

  • Output: 1-5V
  • Supply: 12V
  • Range: 0-10 bar
  • Thread size: 1/8" NPT
Connector Pinout:
  • 1 - Signal
  • 2 - Ground
  • 3 - 12V
