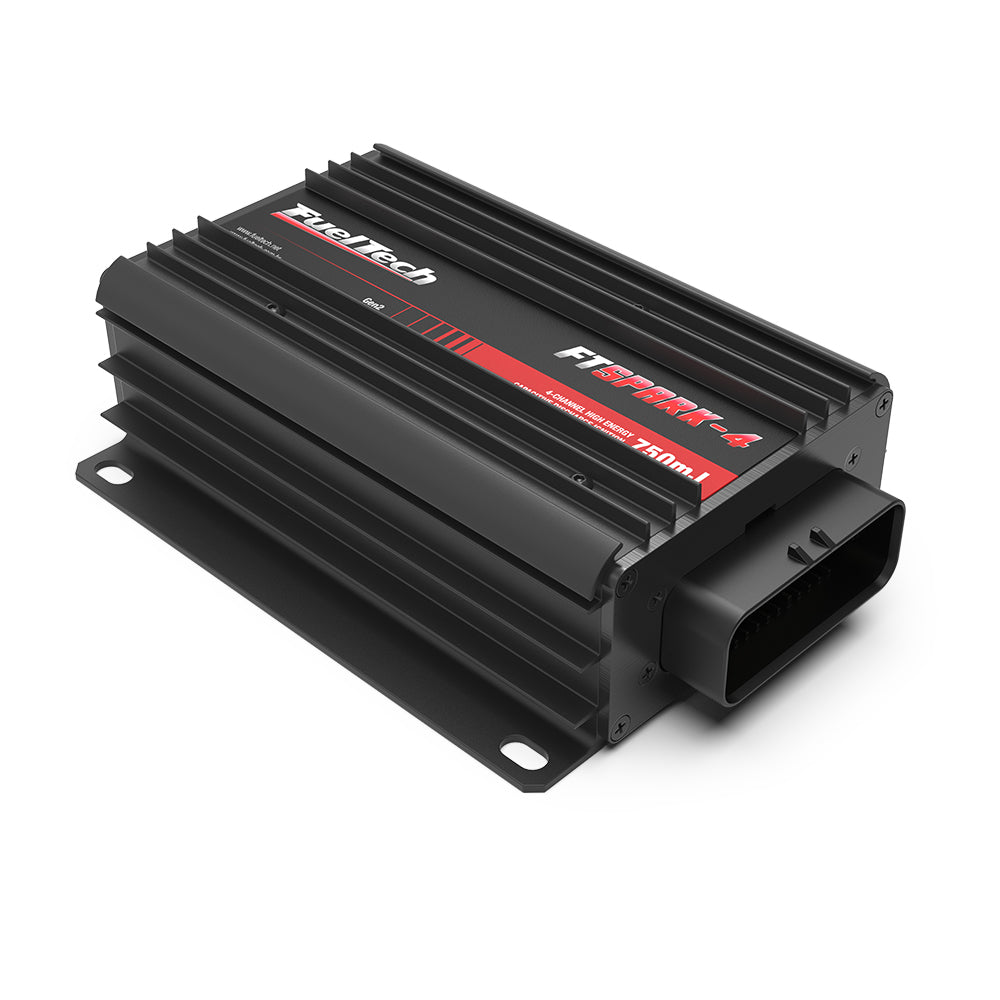

FTSPARK-4 GEN II - 750mJ

5022007544

$1,499.00 $1,699.00

Shipping Cut-Off:  USPS 9:30am EST / UPS 1:00pm EST

  • The FuelTech FTSPARK-4 Ignition is an extremely high-energy Capacitive Discharge Ignition (CDI) system engineered to meet the most demanding spark requirements in racing. Designed for high-horsepower combinations and proven on 5,000+ horsepower engines, the FTSPARK-4 is built to deliver exceptional performance.

    This high-performance ignition system is compatible with any ECU on the market, ensuring seamless integration. The FTSPARK-4 generates up to 750mJ of spark energy and can deliver 140 Amps of current in the primary coil. With this configuration, it delivers 5 times more spark energy and 10 times more current than typical ignition systems, ensuring reliable combustion even in rich air-fuel ratios.

    Recommended for use on 4 cylinder or rotary engines.
  •  FTSPARK Manual

Key Features:

  • Generates up to 750mJ of spark energy and 140 Amps of current in the coil primary.
  • Compatible with all ECUs, providing flexibility for a variety of racing setups.
  • Delivers significantly more spark energy and current than SparkPRO, ensuring strong ignition under any condition.
  • Available in models for 4-, 6-, or 8-coil applications.

Technical Specifications:

  • Programmable energy adjustment via CAN or digital input.
  • Operates with 475V in the primary coil to reduce interference.
  • Features CAN communication with FuelTech PowerFT ECUs for diagnostics and datalogging.
  • Durable anodized aluminum and plastic case.
  • Maximum working temperature: 212°F.
  • Power requirements: 14-26V for full operation, with a minimum starting voltage of 8V.
  • Maximum operating frequency: 670 Hz.
  • Automotive connector with gold-plated terminals for enhanced conductivity.
  • Compatible with other ECUs; contact FuelTech for compatibility details.

Product Dimensions:

  • FTSPARK module: 4.92" x 6.02" x 1.97"
  • Packaging: 8.78" x 6.38" x 2.36"

Weight:

  • FTSPARK-4 GEN II 750mJ: 31.22 oz (Ignition Module), 39.33 oz (Packaging), 34.22 oz (Wiring Harness - Sold Separately)

What’s Included:

  • 1 FTSPARK-4 (GEN II 750mJ) module
  • Installation and operation manual
  • Mounting hardware kit (4 rubber mounts, 8 washers, 8 nuts)

Warranty:

  • 1-year worldwide warranty
