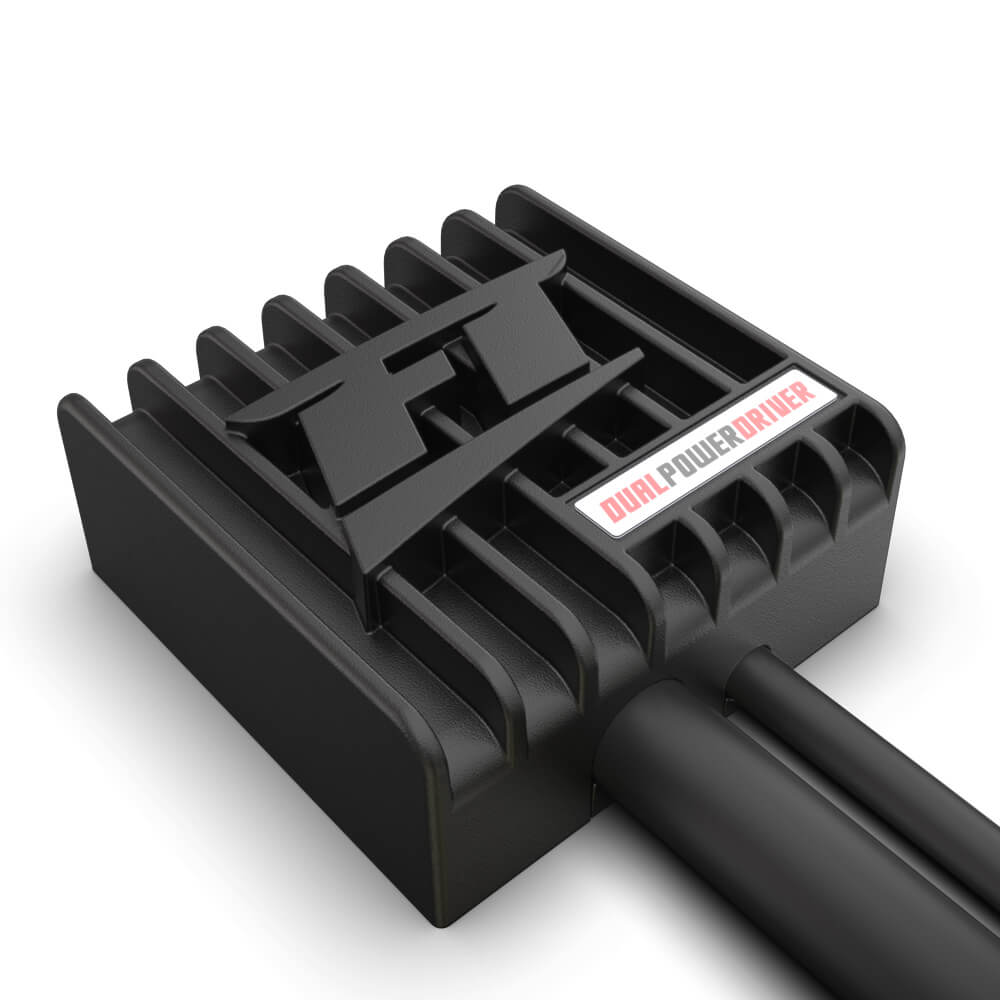

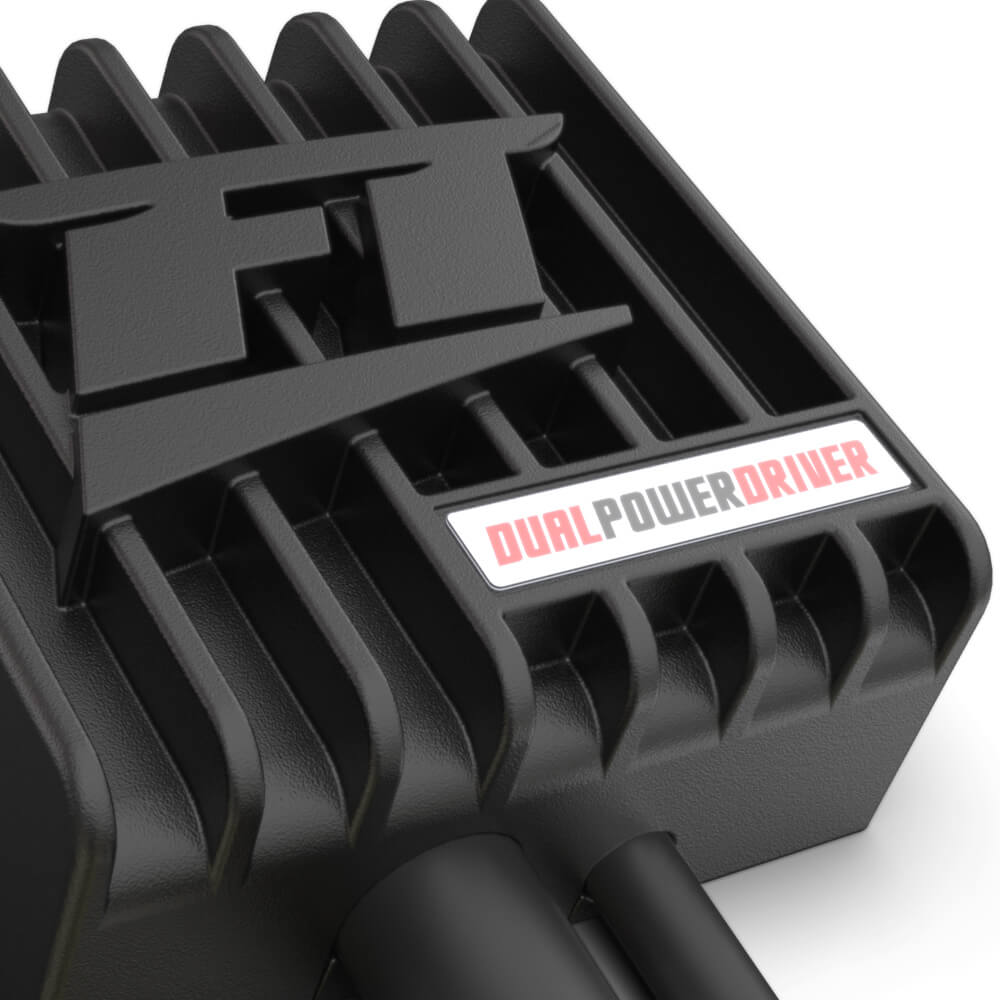

FT Dual Power Driver

3010008282

Shipping Cut-Off:  USPS 9:30am EST / UPS 1:00pm EST


FEATURES

The FT Dual Power Driver has two half bridge outputs that allows the activation of up to 25A current. With two half bridge outputs the DPD can drive a single motor in two directions, or two motors in a single direction. Able to drive high speed PWM (using PWM ECU output). Its robust hardware brings very low delay on activation, allowing the use of controls that use high speed PWM signal.

TECHNICAL DESCRIPTION

  • Power: 9V to 30V
  • Max outputs current (total): 25A
  • Peak current: 100A to 10ms
  • Operating voltage: 9V to 30V
  • Max operating frequency: 25KHz @ 30V
  • Input trigger level LOW: <1.3V
  • Input trigger level HIGH: >1.6V
  • Switching delay: - High to low: 5.6 μs - Low to high: 6 μs





Dimensions:

DPD: 2.16 x 2.16 x 1.10 in (W x H x L)



Weight:

FT Dual Power Driver: 7.76 oz

Package DPD: 0.00 oz



Contents of packaging:

1 FT Dual Power Driver;

1 Users Manual

1 Mounting kit



Warranty: Worldwide: 1 year
