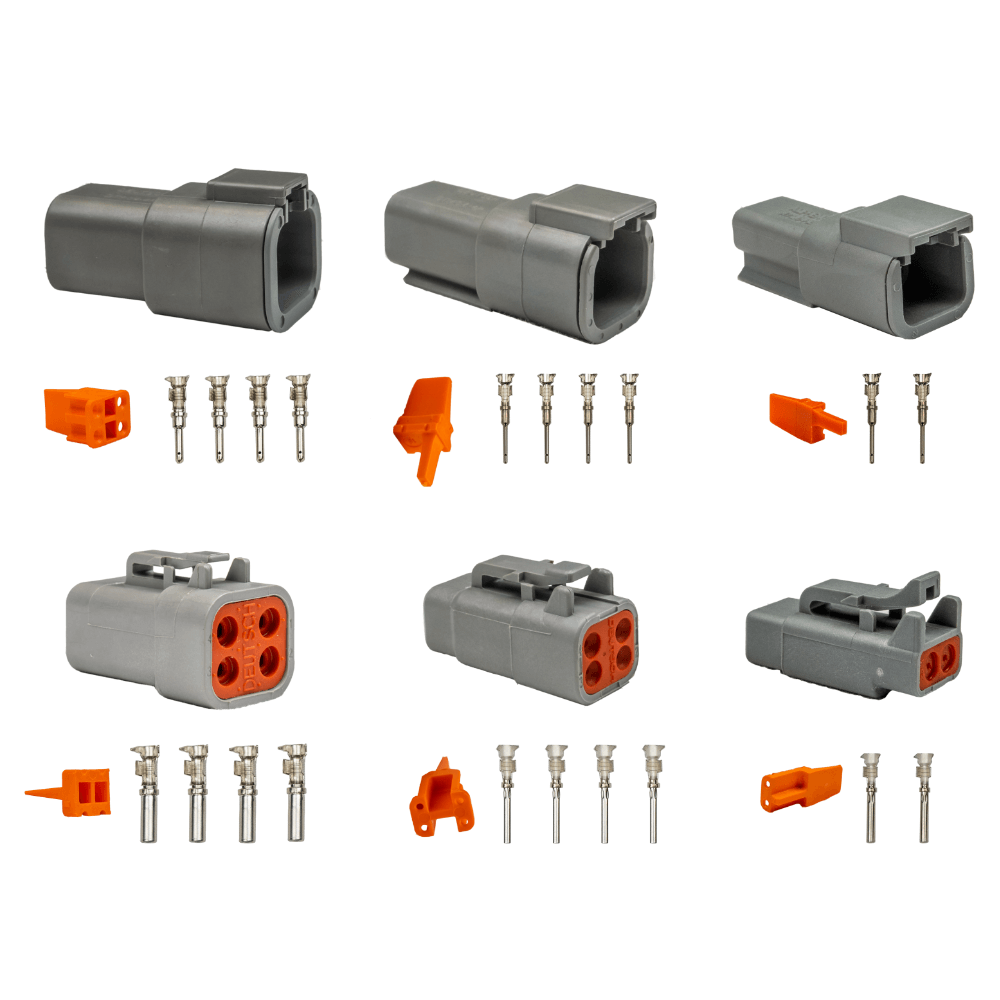

Dual Power Driver Connector Kit

RECOMMENDED INSTALL INSTRUCTIONS

4-way cable from DPD to DTP 4 pin

• DTP 4 pin female
• pin 1- Large red wire from DPD
• pin 2- Large black wire from DPD
• pin 3- Large blue wire from DPD
• pin 4- Large white wire from DPD

• DTP 4 pin male
• pin 1- 12V from fuse (40A max)
• pin 2- Battery negative
• pin 3- eGate large red wire (motor +)
• pin 4- eGate large white wire (motor -)

2-way cable from DPD to DTM 2 pin

• DTM 2 pin female
• pin 1- Small red wire from DPD
• pin 2- Small white wire from DPD

• DTM 2 pin male
• pin 1- ODD numbered yellow output (1, 3, 5, or 7)
• pin 2- EVEN numbered yellow output (2, 4, 6, or 8)

eGate sensor wires to DTM 4 pin

• DTM 4 pin female
• pin 1- Small red wire from eGate (5V+)
• pin 2- Small black wire from eGate (sensor ground)
• pin 3- Small white wire from (position signal)
• pin 4- Small orange/yellow from eGate (temperature signal)

• DTM 4 pin male
• pin 1- Green/red stripe from ECU (5V+)
• pin 2- Green/black stripe from ECU (sensor ground)
• pin 3- Any available white input wire from ECU (position signal)
• pin 4- Any available white input wire from ECU (temperature signal)

NOTE- the small blue wire from eGate multi core wire is not used
