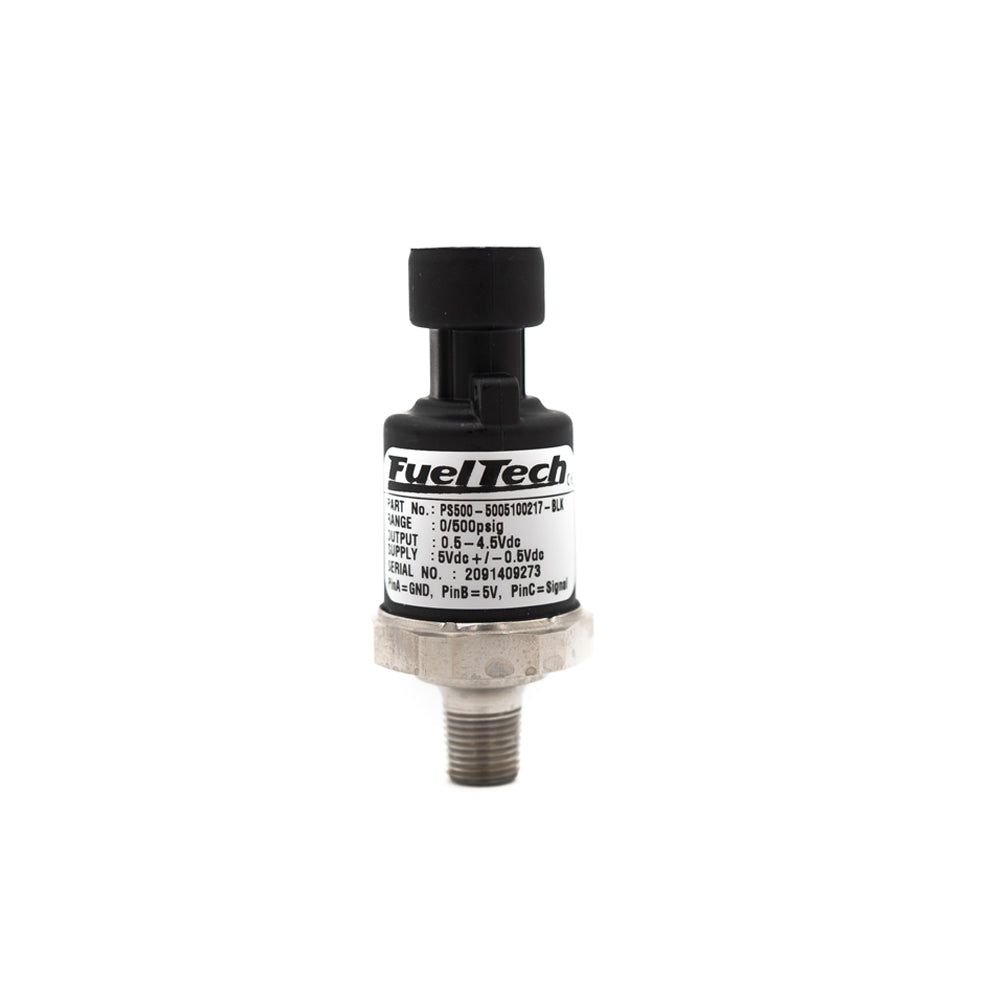

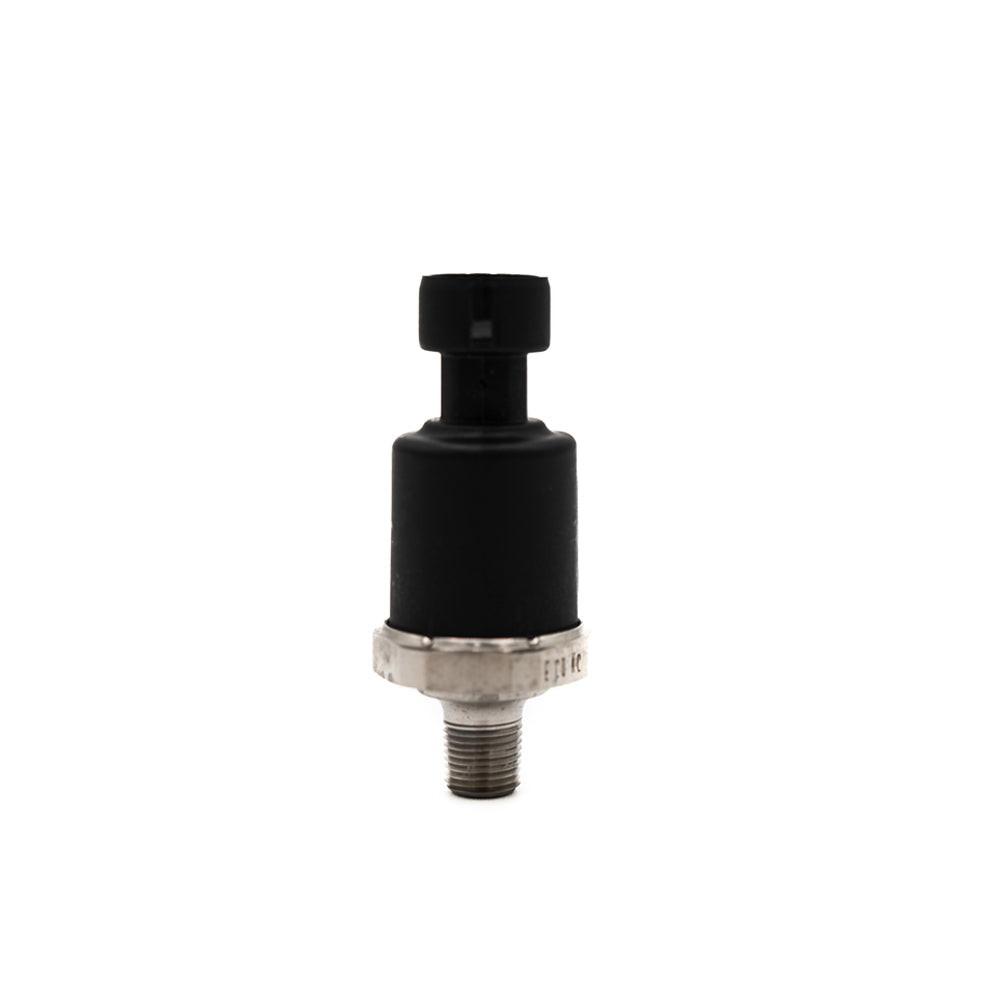

PS-500 Pressure Sensor (0-500 psi)

5005100217-BLK

Shipping Cut-Off:  USPS 9:30am EST / UPS 1:00pm EST

FuelTech's 0-500psi Pressure Sensors are engineered to precisely monitor critical parameters in automotive systems such as transmission, converter, clutch, and mechanical fuel pressure. With a measurement range spanning from 0 to 500 pounds per square inch (psi), these sensors offer accurate real-time data essential for optimizing performance and ensuring system integrity. Engineered with meticulous attention to detail, they feature durable construction and high-quality materials, guaranteeing reliable operation even in demanding conditions.

  • Output: 0.5-4.5V
  • Supply: 5V
  • Range: 0-500 psi

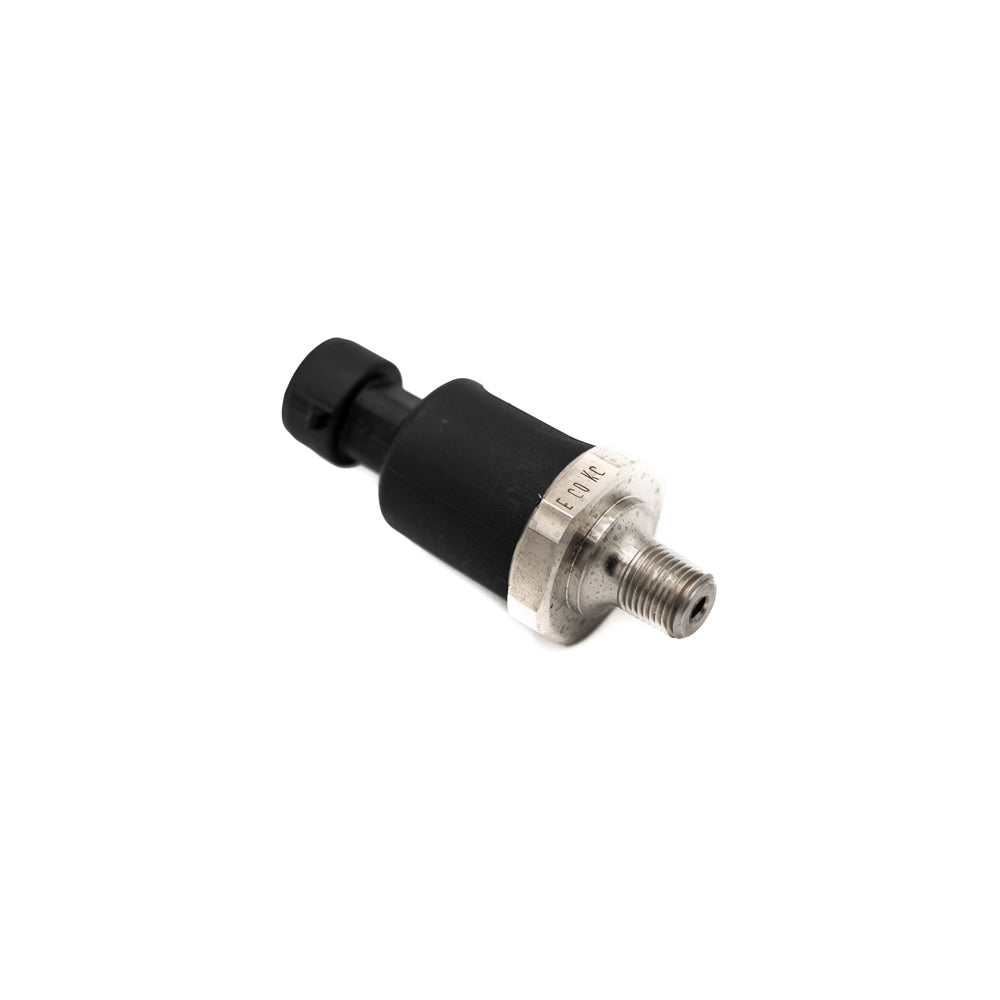

  • Thread size: 1/8" NPT

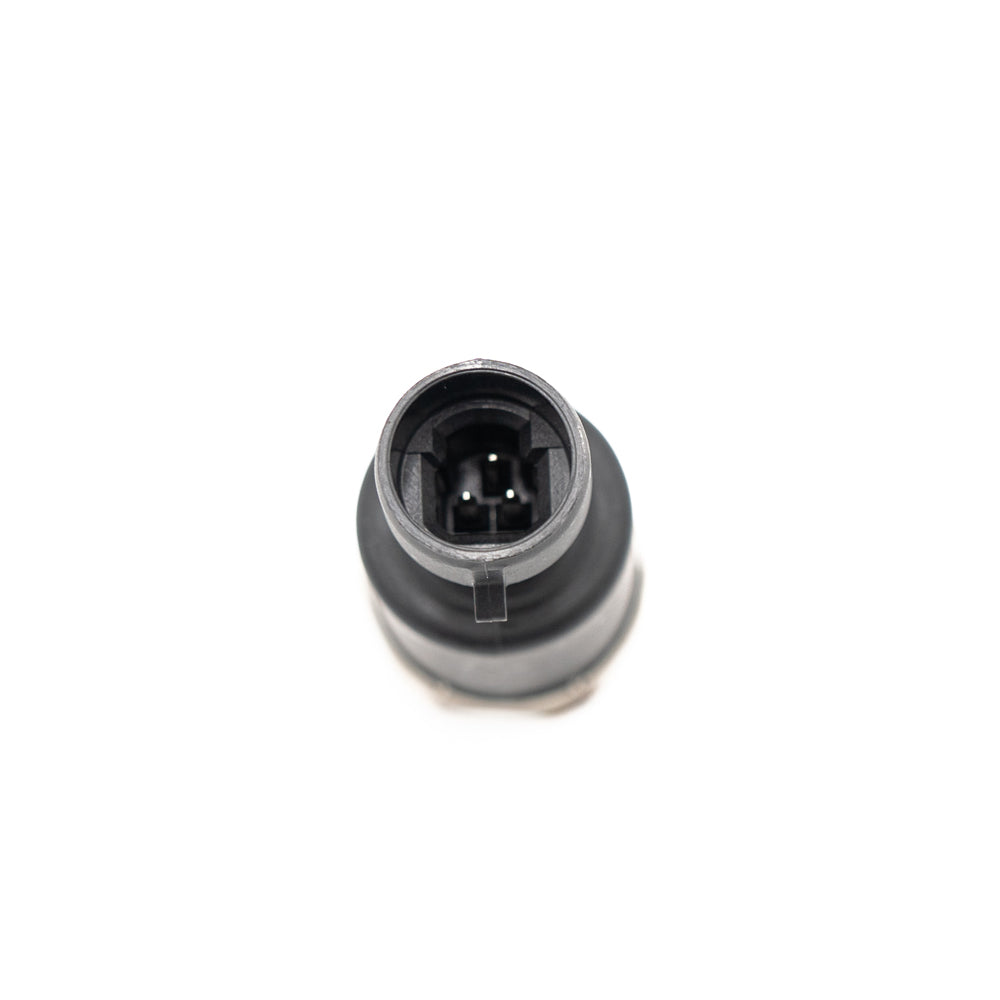

Connector Pinout:

  • A - Ground
  • B - 5V
  • C - Signal
