EGT-4 CAN

5022007368

Shipping Cut-Off:  USPS 9:30am EST / UPS 3:00pm EST

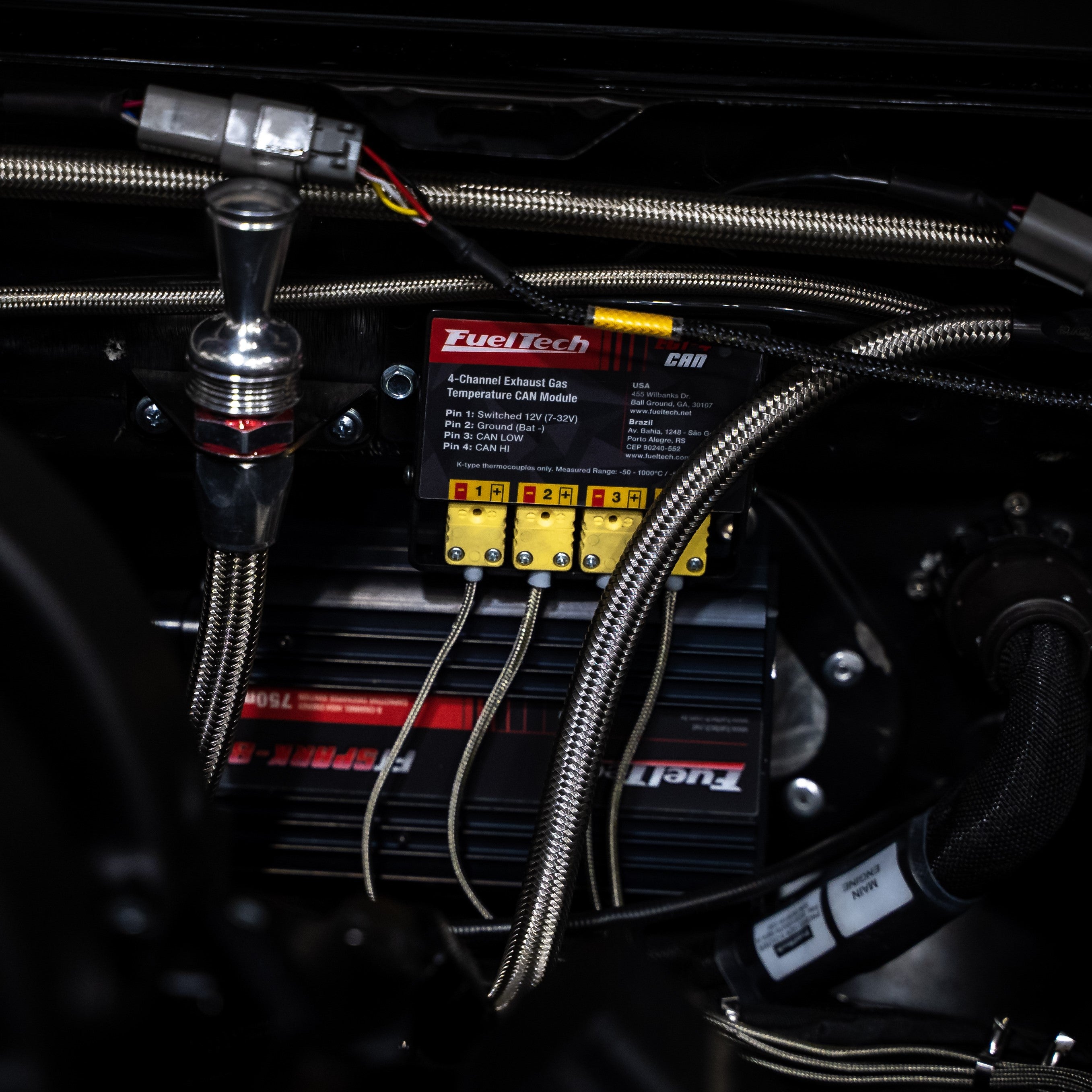

  • 4 channel conditioner for Type K thermocouples with CAN communication for PowerFT ECU's.
  •  EGT-4 CAN Manual

FEATURES


  • The FuelTech EGT-4 CAN is compatible with any type K thermocouple (grounded junction or not).
  • 4 channel signal conditioner with CAN bus communication for PowerFT ECU's, can be used to read EGT's, CHT's, oil, air, water or any other temperature using a type K thermocouple.
  • Works as an input expander for PowerFT ECU's, freeing up 4 white input channels to be used ofr other purposes.
  • With the possibility to use up to 4 EGT-4 modules in the same installation, as much as 16 different channels will be available for all sorts of data aquisition.
  • Compatible with PowerFT ECU's (FT450, FT550, FT600, FT500LITE and FT 550LITE).

PACKAGES

V8 / 2 units, harnesses and 8 sensors:

  • w/ 2 harnesses
  • 2 of each 42"/36"/30"/24" Thermocouple sensors included
  • Add second EGT-4 CAN unit

6 cylinder / 2 units, harnesses and 6 sensors:

  • w/ 2 harnesses
  • 48"/42"/36"/30"/24"/18" Thermocouple sensors included
  • Add second EGT-4 CAN unit

4 cylinder / harness and 4 sensors:

  • w/ harness
  • 42"/36"/30"/24" Thermocouple sensors included

4 rotor / harness and 4 sensors:

  • w/ harness
  • 4 of the 36" Thermocouple sensors included

3 rotor / harness and 3 sensors:

  • w/ harness
  • 3 of the 36" Thermocouple sensors included

2 rotor / harness and 2 sensors:

  • w/ harness
  • 2 of the 36" Thermocouple sensors included



TECH DESCRIPTION

  • Inputs: 4 type K thermocouple inputs
  • Outputs: 1 CAN
  • Dimensions:
    • Product EGT-4 CAN : 4.33 x 2.28 x 0.7 in
    • EGT-4 CAN Packaging: 8.78 x 6.38 x 2.36 in
  • Weight:
    • Product EGT-4 CAN : 4.87 oz
    • EGT-4 CAN Packaging without harness 78.75 in: 12.13 oz
    • Harness SwitchPanel / EGT-4 CAN 78.75 in: 2.54 oz
  • Contents of packaging:

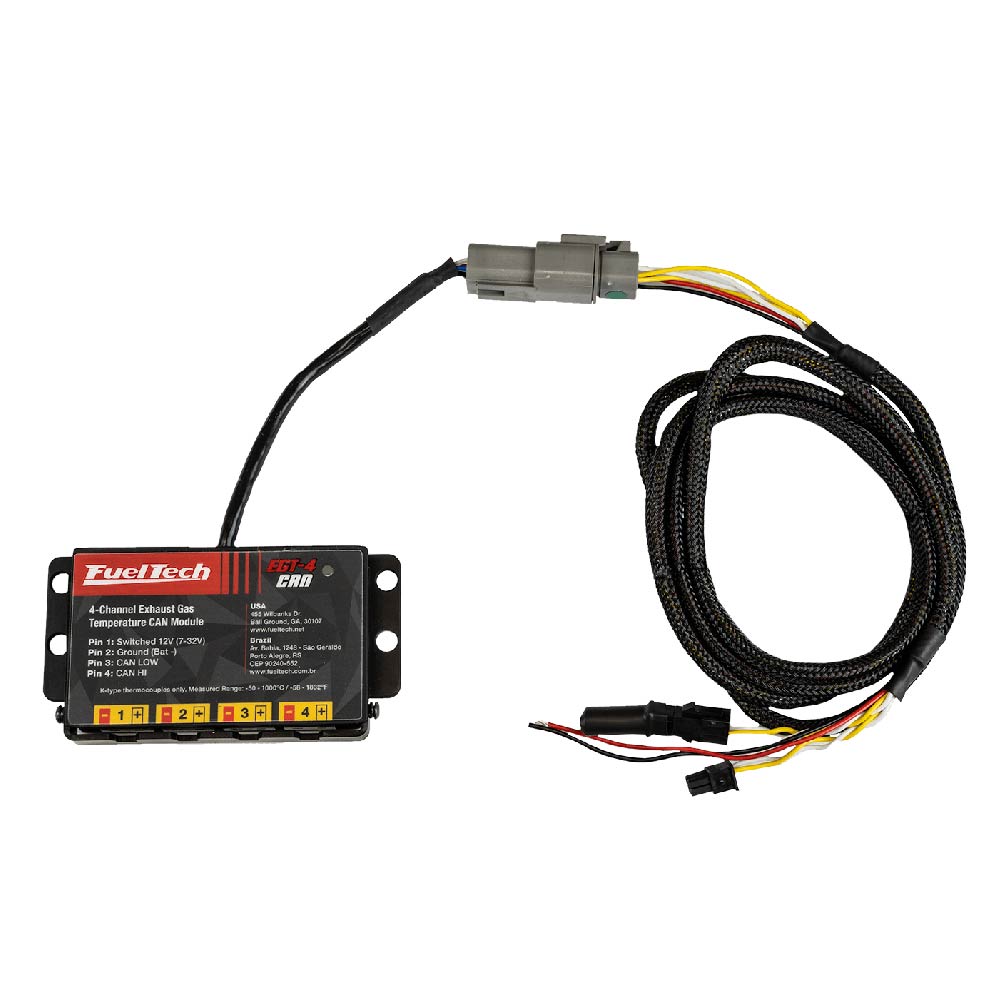

    • 1 EGT-4 CAN with Harness
    • 1 Installation and operation manual
  • Warranty:
    • Worldwide: 1 year
