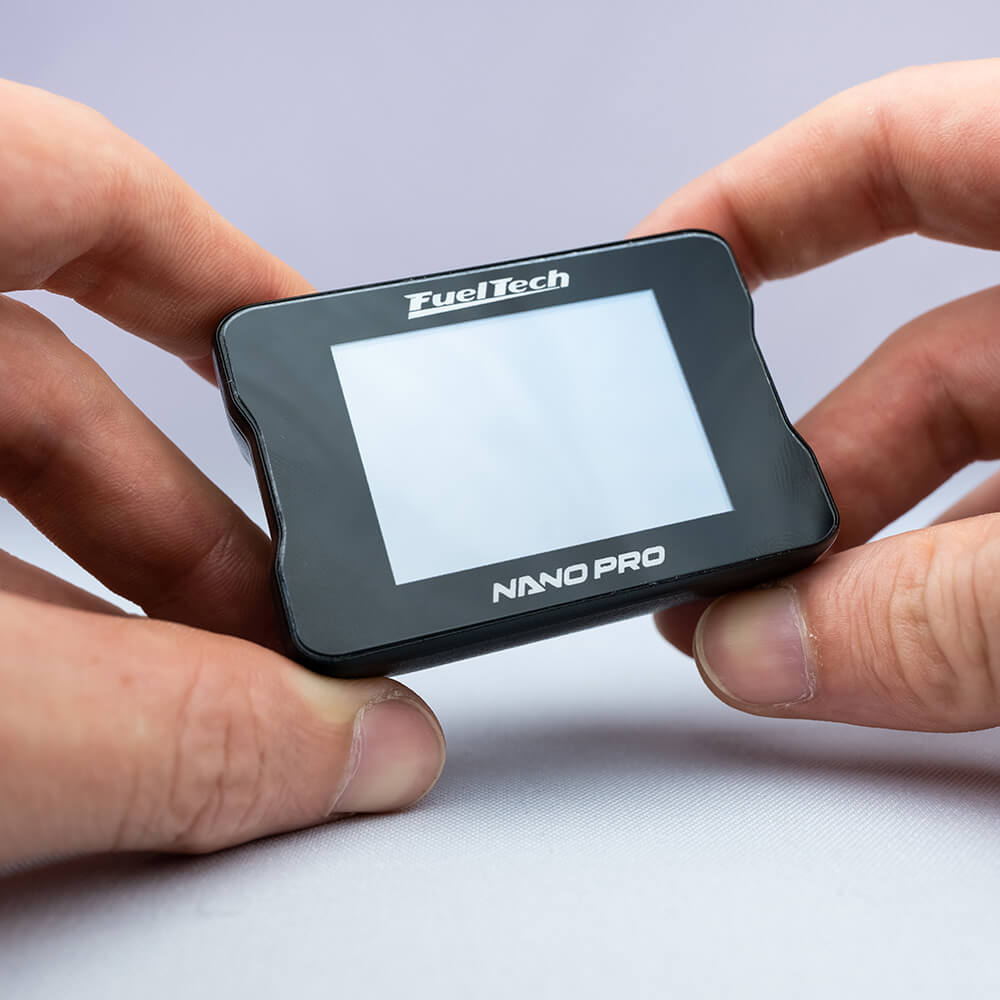

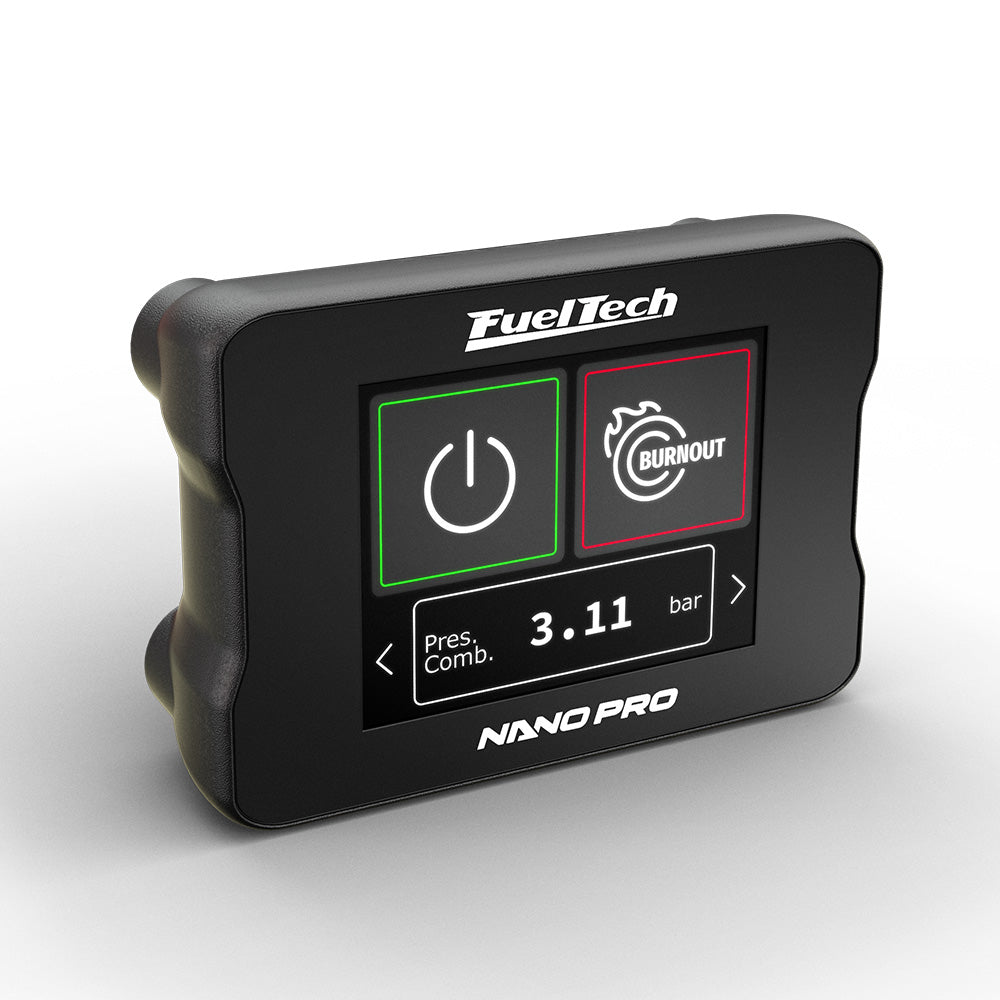

NanoPRO Wideband O2 Sensor Controller

3010009597

$339.00 $389.00

Shipping Cut-Off:  USPS 9:30am EST / UPS 1:00pm EST

  • The 3-in-1 NanoPRO is a Wideband O2 Sensor Controller, Dash Display, and Switch Panel in one!
    Wideband O2 Senser Controller: The NanoPRO is compatible with 5 different wideband O2 sensors (Bosch 4.2, Bosch 4.9, Bosch 5.2, NTK ZFAS, and NTK Wideband O2 Sensor. The NanoPRO keeps your O2 sensor at the optimal temperature for accurate readings with 3 configurable heating modes; normal, fast, and current limited, in addition to auto startup. Additionally, the NanoPRO has an extended wideband reading scale with advanced hardware for fast and precise readings (reading range can reach values slightly lower than 0.21 λ).

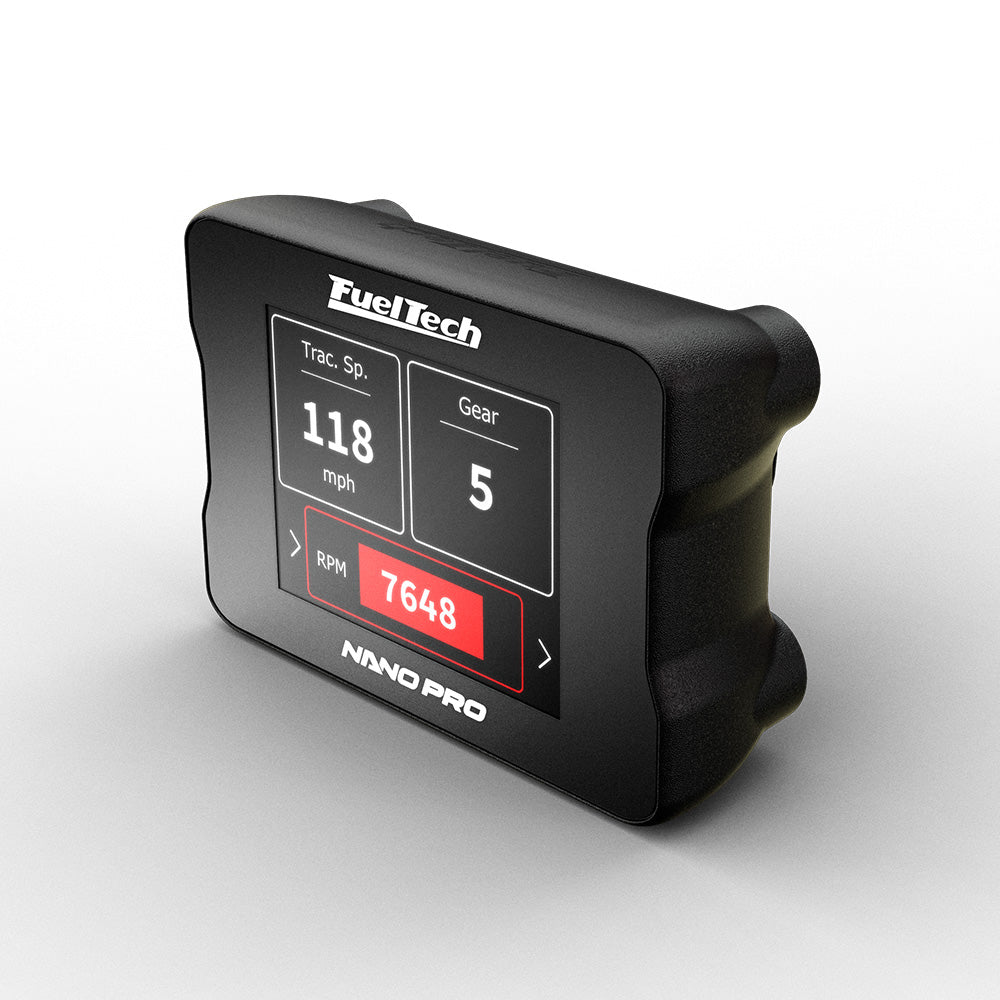

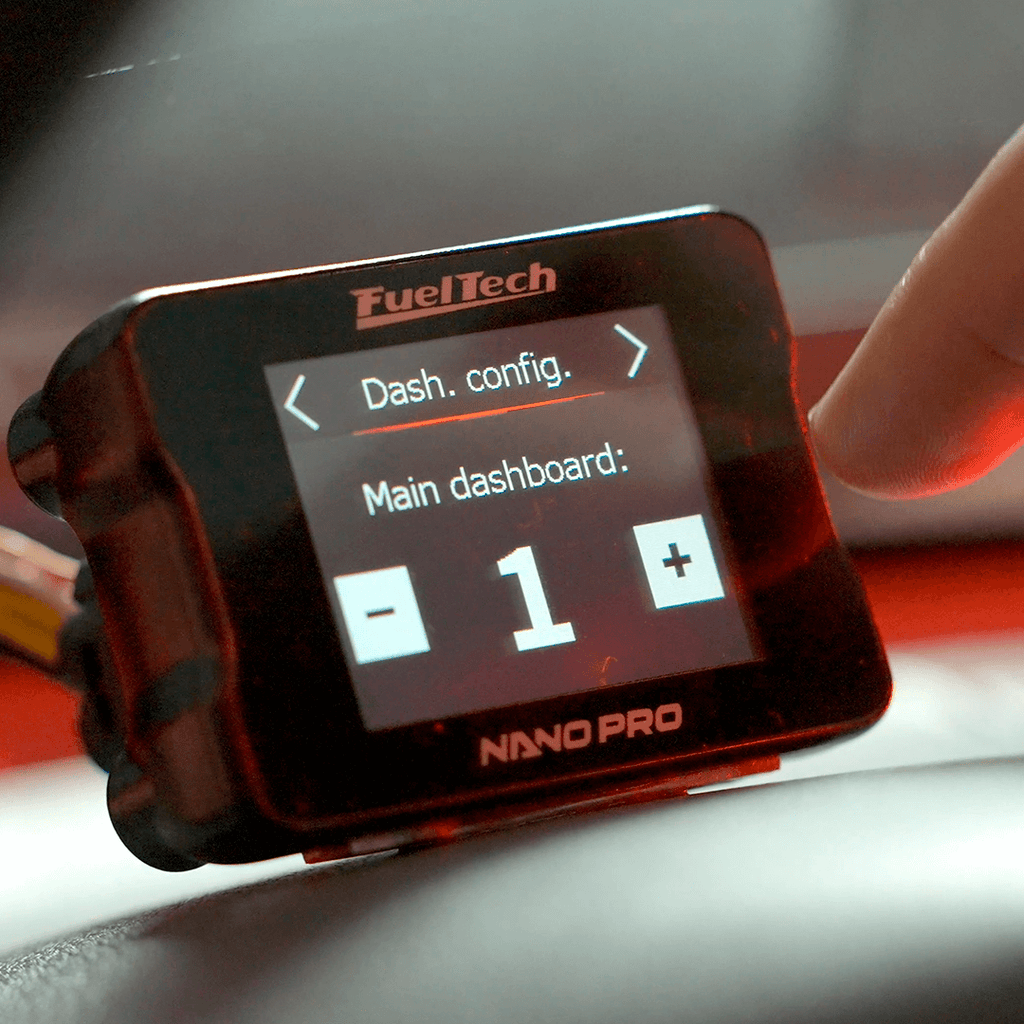

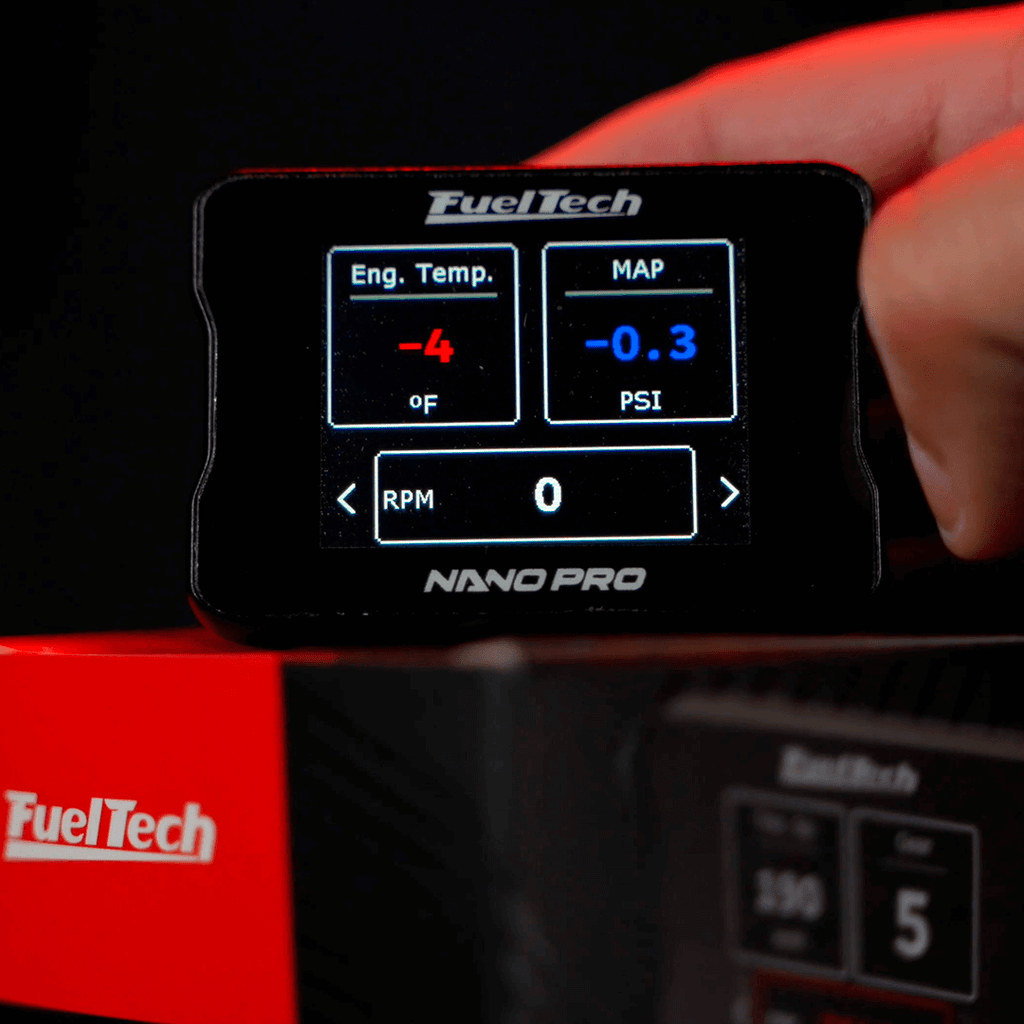

    Dash Display: With a 2” color touchscreen, the secondary display gauge function allows you to display information such as oil pressure, fuel pressure, boost, RPM, engine temperature, and more with the ability to configure up to 5 custom screens.

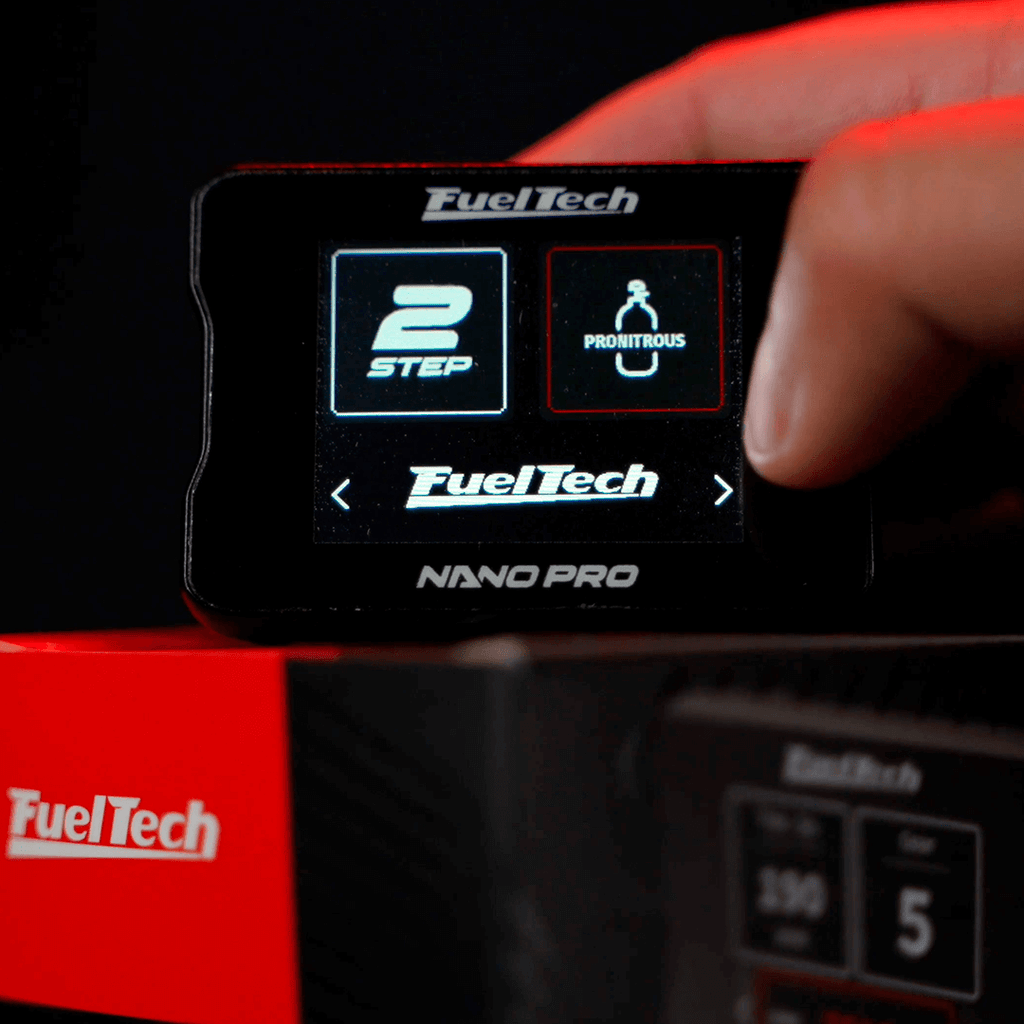

    Switch Panel: The touchscreen display offers switch panel style button capability via CAN bus connection to your FuelTech ECU, providing more functionality without using an analog input.
    The NanoPRO is IP67 rated (when properly connected to the harness), making it perfect for marine, off-road, and automotive applications.
  •
  • See harness & sensor options options below. Harness and sensors not included with NanoPRO.

    ● BOSCH LSU 4.2 (sensor, harness)
    ● BOSCH LSU 4.9 (harness)
    ● BOSCH LSU 5.2
    ● NTK ZFAS (sensor, harness & adapter)
    ● NTK Wideband O2 Sensor

  • Manual NanoPRO
    https://www.fueltech.net/pages/softwareSoftware FTManager
    CAD NanoPRO
NanoPRO The Best Wideband O2 Sensor Controller with AFR and Lamda

MORE THAN AN 02 CONDITIONER

THE EVOLUTION OF
YOUR PROJECT

  • Extended wideband reading scale with advanced new hardware that allows fast and precise readings.
  • 2.0” touchscreen color LCD.
  • “Second display gauge” function that allows display valuable information like Oil Pressure, Fuel Pressure, Boost, RPM, Engine Temperature and
    much more coming from the FTCAN 2.0, with the possibility of configuring up to 5 custom screens.
NanoPro Wideband O2 Sensor Controller, Virtual Racing Switch Panel, Touchscreen Display
NanoPro Wideband O2 Sensor Kit for Bosch 4.2, Bosch 4.9, Bosch 5.2, NTK ZFAS, NTK Wideband O2 Sensor

ADVANCE TO THE
PRO LEVEL

  • “Switch Panel” function, touchscreen buttons or switches via CAN bus to the PowerFT ECU.
  • 3 configurable O2 sensor heating modes: Normal, Fast and Current Limited, as well with auto startup, activated by engine RPM or temperature.
  • Advanced heater diagnostics in the PowerFT ECU datalogger.
  • Waterproof (IP67 certified*)
    *with product harness connected
NanoPro Wideband O2 Controller with Touchscreen Display
FuelTech NanoPro with OBD Harness

VIEW YOUR CAR'S FACTORY ECU DATA ON YOUR NANOPRO SCREEN

The NanoPRO to OBD2 harness and expansion harness allow you to connect the NanoPRO to your vehicle's OBD2 output, conveniently displaying data from your vehicle's factory ECU on your NanoPRO screen. There are two installation options available.

  • NanoPRO to OBD2 Harness is for new NanoPRO installations where a NanoPRO wiring harness is not currently installed.
  • OBD2 Expansion for Existing NanoPRO Wiring Harness is for vehicles that have already installed the NanoPRO Harness.

To verify your vehicle's compatibility, please visit the OBD NanoPRO Harness Compatibility page. If you have any questions, please contact technical support.



*Compatible vehicles are manufactured after 2008 and use CAN-OBD2 (ISO 15765) communication protocol. While not all compatible vehicles will be listed on the Compatibility Verification page, only those vehicles listed have been verified as compatible.

FuelTech NanoPro 3-in-1 Wideband O2 Sensor Controller, Secondary Dash Display, and Virtual Switch Panel
FuelTech NanoPro Wideband O2 Controller
WelTech NanoPro 3-in1 Wideband O2 Controller and WB-O2 Nano
Connector for NanoPro for Closed Loop O2

Datasheet

  • Waterproof (IP67 certified*)
  • 2” color display with resistive touchscreen
  • Compatible with 5 different models of O2 sensors: BOSCH 4.2 / 4.9 / 5.2 / NTK ZFAS and NTK Wideband O2 Sensor.

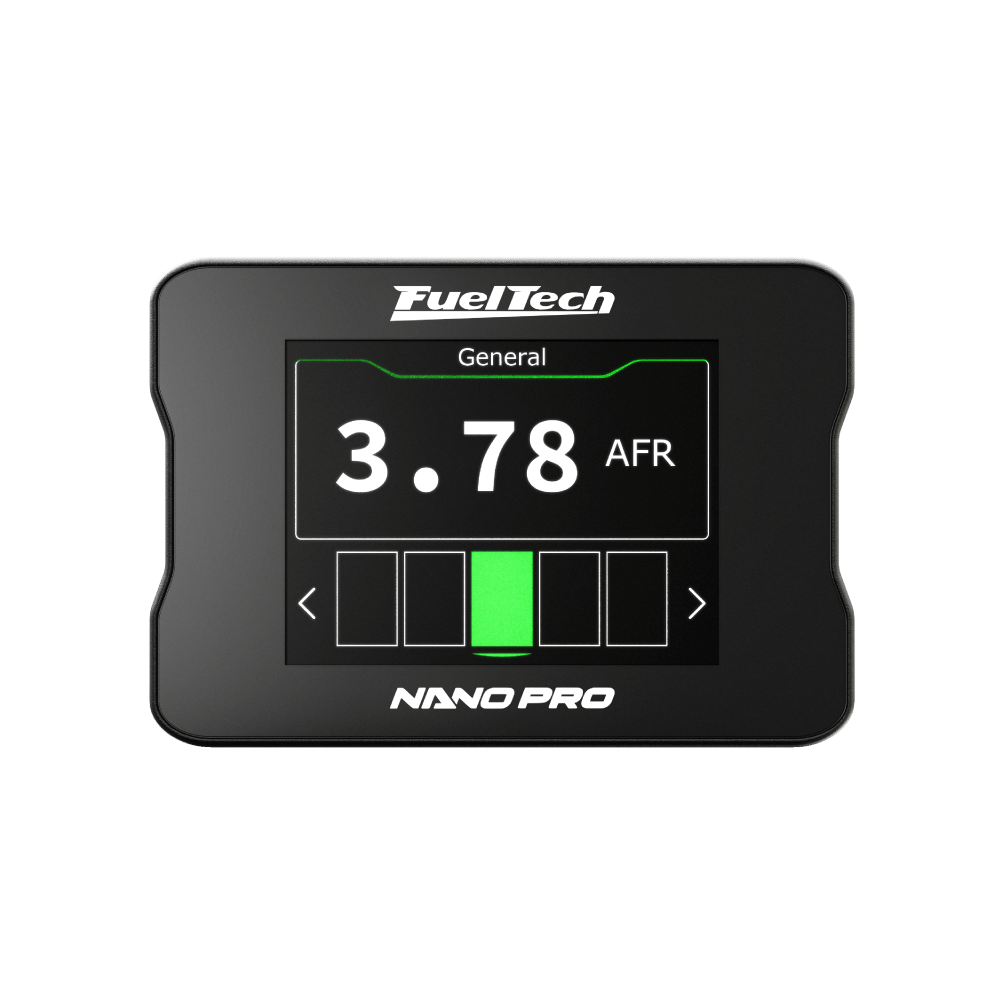

  • Different fuels AFR or lambda display unit options **
    • Lambda (0.21 - 9.99)
    • AFR Methanol (1.35 - 64.6)
    • AFR Gasoline (3.09 - 146.6)
    • AFR Ethanol (1.89 – 89.9)
  • CAN communication with Power FT ECU’s:
    • “Second display gauge” function that allows display valuable information like Oil Pressure, Fuel Pressure, Boost, RPM, Engine Temperature and much more coming from the FTCAN 2.0, with the possibility of configuring up to 5 custom screens
    • “Switch Panel” function, touchscreen buttons or switches via CAN bus to the PowerFT ECU.
  • 3 configurable O2 sensor heating modes: Normal, Fast and Current Limited, as well activated by engine RPM or temperature
  • Advanced heater diagnostics in the PowerFT ECU datalogger

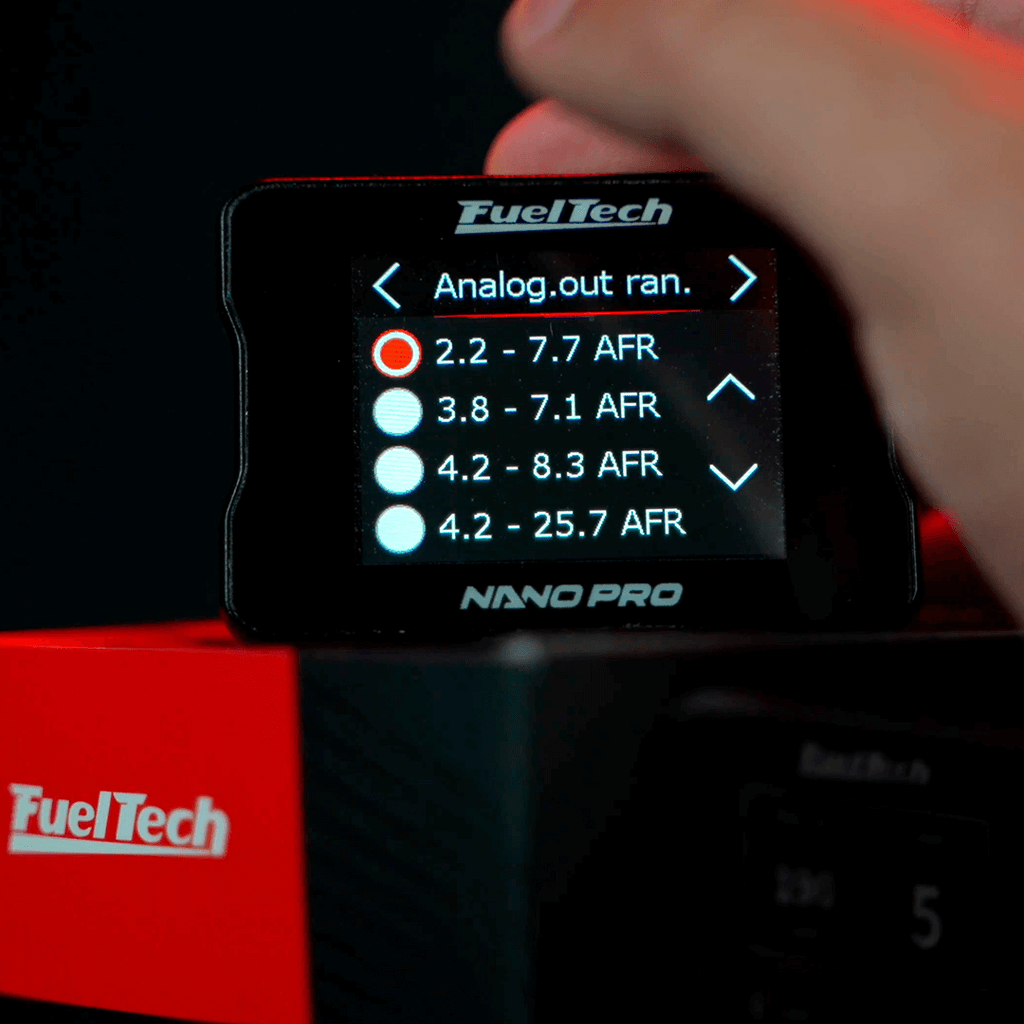

  • 0-5V analog output for connection with any data acquisition or programmable injection system.

- Maximum power supply voltage: 20V

- Automotive connector

*with product harness connected
** The reading range can reach values slightly lower or higher than 0.21 λ, depending on the manufacturing characteristics of the sensor.



Dimensions

  • Dimensions: 2.64” x 1.83” x 1.48” (in)

Weight

  • Module: 1.84 oz
  • Product: 3.99 oz

Contents of packaging

  • NanoPRO module
  • Instructions guide
  • 4 screws for fixation

Warranty

Limited Warranty. The warranty on this product is 1 year from the date of purchase and covers manufacturing defects only

Requires

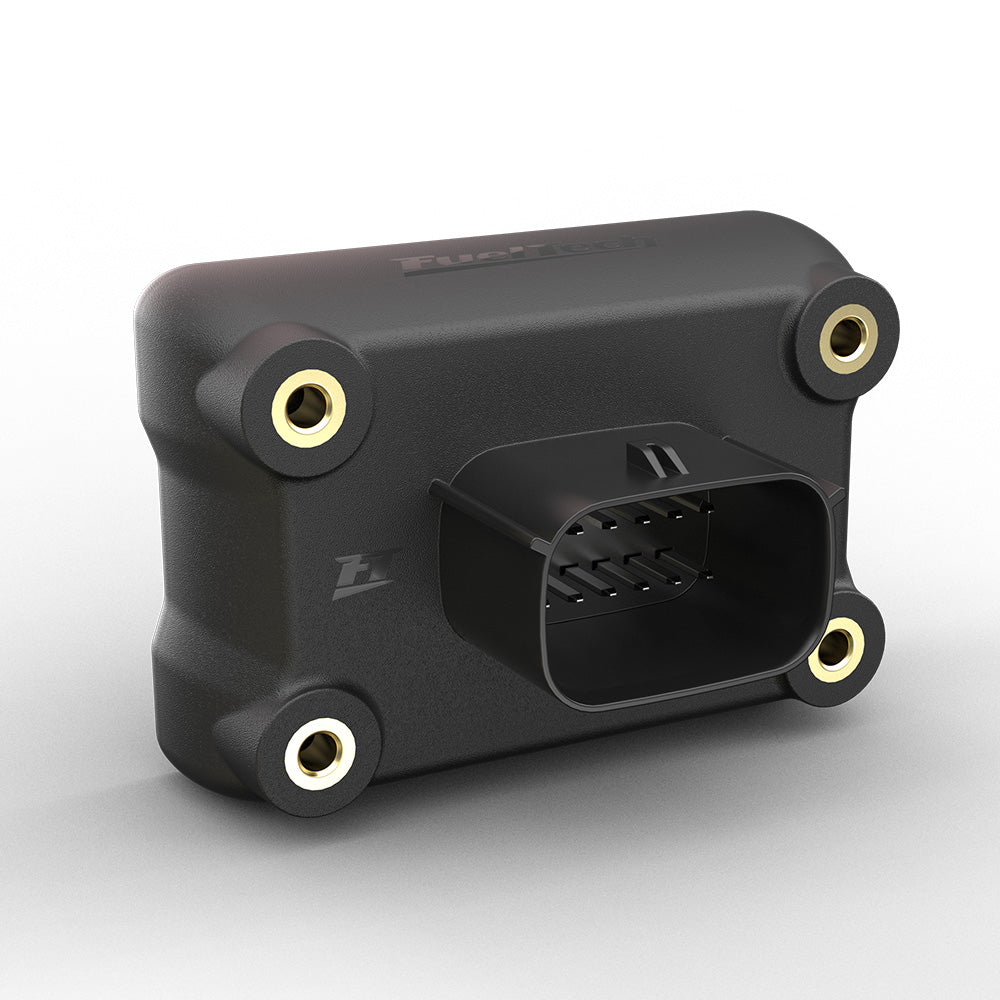

The NanoPRO has a 12-way connector with 3 wire groups. One of them has the connector for the O2 sensor, the second makes the CAN communication with Power FT ECU’s and the third is responsible for power and analog output.
The FuelTech NanoPRO has the same connector as the already established WB-O2 NANO, so if the vehicle already has a NANO installed, just disconnect it and install the new NanoPRO in the place that the probe signal reading will already be working.

FAQ

Can I replace my WB O2 NANO with a NanoPRO?
Yes, it is possible to replace the NANO with a NanoPRO using the same connector.

Can I use the NanoPRO without a FuelTech ECU?
Yes, the NanoPRO can be used individually, or even with other equipment that has an analog input (0 to 5V) for monitoring O2-sensor values.

Which O2-sensor can I use with the NanoPRO?
You can choose one of the models below, just configure the NanoPRO according to the desired model.
BOSCH LSU 4.2
BOSCH LSU 4.9
BOSCH LSU 5.2
NTK ZFAS Part number FuelTech: 5005100011

Can I replace the sensor model I use in my project?
Yes, to replace the sensor model that is used with the NanoPRO, just change it, modifying the harness with the connector kits, or performing a new installation. That done, just change the settings of your NanoPRO and that's it!
Your car will already be operating with the new sensor.

I tuned my car with one sensor model and then chose to change to a different one. Do I need to change the O2 sensor parameters for closed loop?
No! After sensor replacement, simply change the configuration of your NanoPRO to the new model.

What kind of project will use/need quick heating mode?
For competitors using O2 sensor closed-loop fuel compensation and need O2 heating as fast as possible, even if it means a reduction in sensor lifespan.

Who is limited heating mode suitable for?
For applications with limited or low battery load capacity, such as motorcycles.
